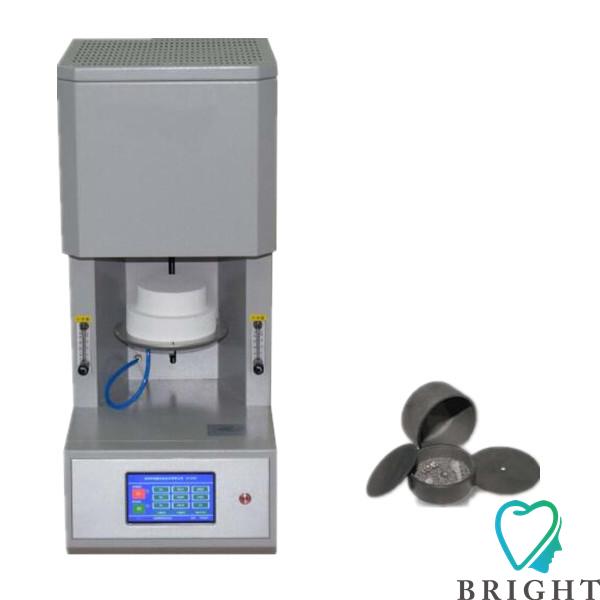

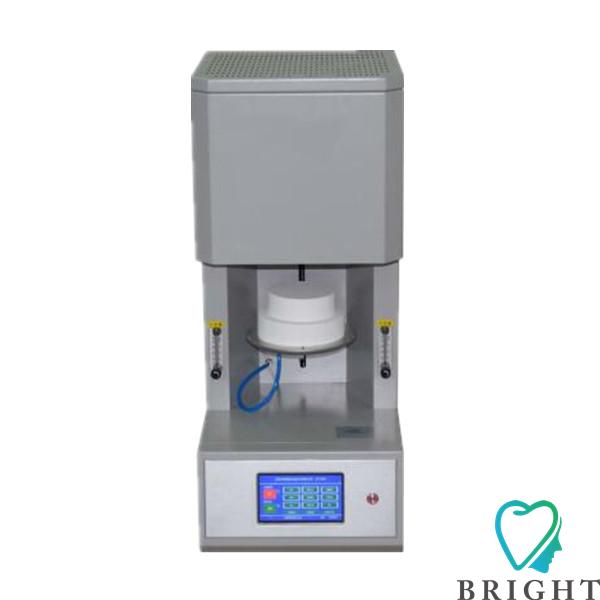

Soft Metal Sintering Furnace
Description:
This CoCr Metal Sintering Furnace is special designed for CoCr blank's lab sintering furnae system is composed by special designed crucible,and gas insert system with special design sintering chamber.All of the sintering curve is controlled by programmable. 1,PID control,30 steps programmable curve can pre-store 2,LCD touch panel controller,easy for operate 3,Double layer structure,keep furnace in low temperature 4,large chamber dimension,allow user sintering two pieces blank 5,Utra silent screw rod elevator,lift up/down no noise 6,New software control,compared with other supplier,sintering time can be reduce two hours,to achieve real fast sintering
Date Sheet:
Model
LDSM-1400BT
Voltage and Frequency
AC110/220V 50/60HZ
Internal size
Dia:120mm*Height:110mm
Power
2kw
Heating Rate
0-20C/min
Heating Element
High Purity SIC
Thermocouple
S type
Temperature Alarm
1,Over temp alram
2,Broken thermocouple alarm
Furnace Shell
Double Shell sctructure with fans cooling
system eusure the temperature of furnace surface is below 40.c
Furnace Chamber
Chamber material is light alumina ceramic
fiber, reasonable design, heat preservation performance is good, saving
energy.
Temperature control
1,PID automatic control with 30 segment
programable via SCR (Silicon Controlled Rectifier) power control with phase
angle fired, current limiting resistor.
2, Built in PID Auto-Tune function with
overheating & broken thermocouple broken protection.
Sealing Method
Lifting Tray
Inlet/Outlet Gas
Two Way
Packing Weight
90kg
Packing Size
630*460*1060mm
