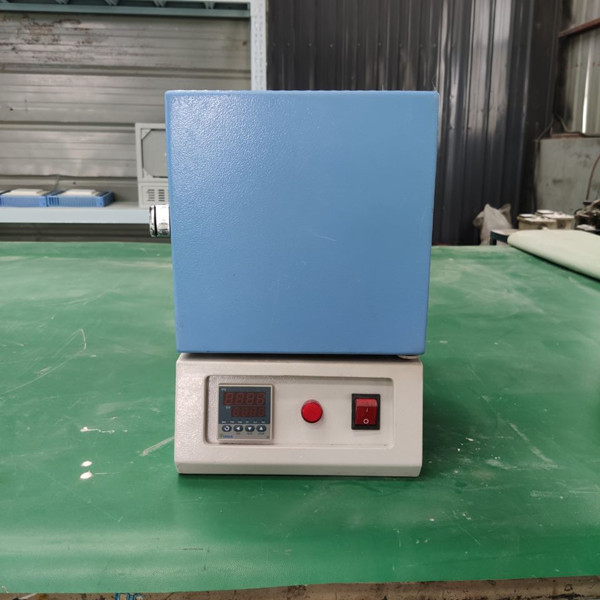

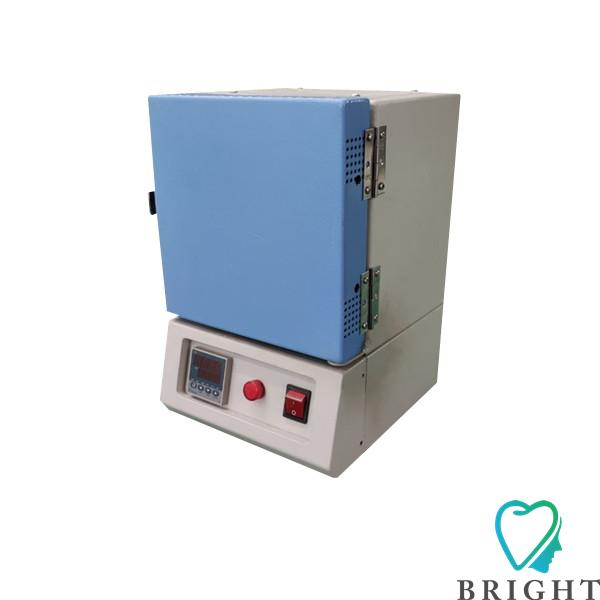

Mini Muffle Furnace
Products feature:
1. Compact Design with good outward appearance
2. Light weight:15kg
3.Max. temperature:1200C
4.Chamber size:10cm*10cm*10cm
5. Energy save because with high quality ceramic fiber
insulation
Products Data:
|
Model |
LD-Mini Muffle Furnace |
|
Voltage |
AC220V 50/60HZ |
|
Internal size |
100*100*100mm |
|
Max Temp |
1200c |
|
Work Temp |
1000c |
|
Power |
1kw |
|
Heating Rate |
0-20C/min |
|
Heating Element |
Resistance Wire |
|
Thermocouple |
K type |
|
Temperature Alarm |
1,Over temp alram |
|
2,Broken thermocouple alarm |
|
|
Furnace Chamber |
Chamber material is light alumina ceramic fiber, reasonable design, heat preservation performance is good, saving energy. |
|
Temperature control |
PID automatic control with 30 segment programmable
|
|
Net Weight |
15kg |
|
Packing Size |
215*180*320mm(L*W*H) |
