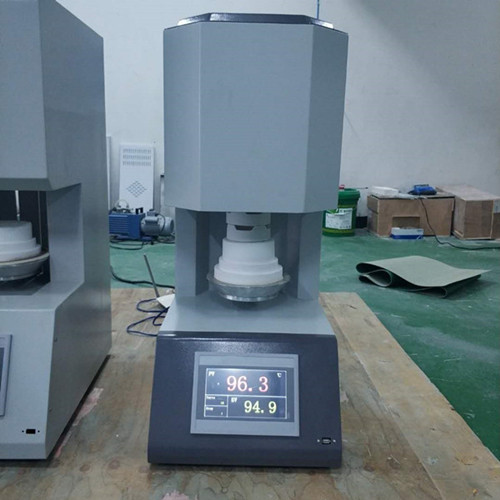

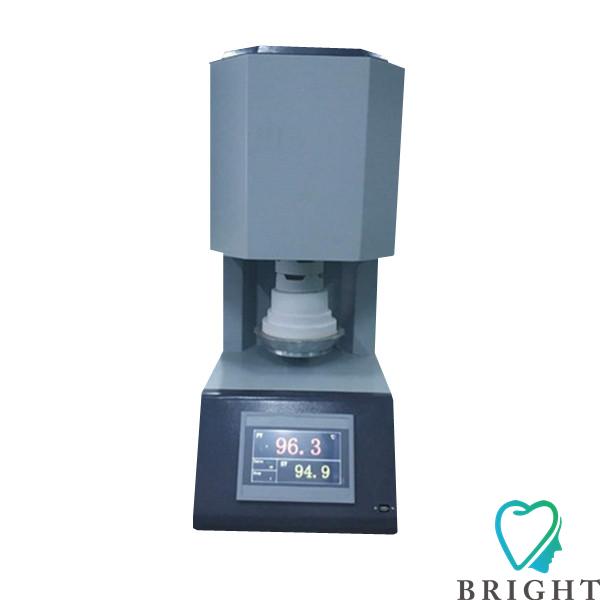

Zirconia sintering furnace lift type

Working voltage and frequency

110/220V 50/60HZ

Power

2 KW

Heating rate

0~20  Degree/Min

Heating Element

1,High purity MoSi2 Rod no pollution for zirconia                                                                                                                                          2,6 pcs MoSi2 Rod inside chamber can be achieve better uniformity of temperature

Max.Temp

1700℃

Work Temp

1600℃

Furnace Shell

1,Double Shell sctructure with fans cooling system eusure the temperature of furnace surface is below 40.c.                                                   2,Furnace has chimney to discharge dirty air when sintering zirconia to ensure get glossiness products

Furnace Chamber Material

High quality alumina ceramic fiber,light weight/better insulation/energy save

Temperature Alarm

1,OverTemperatureAlram                                                                                                                                                                              2,Broken thermalcouple alarm

Temperature control

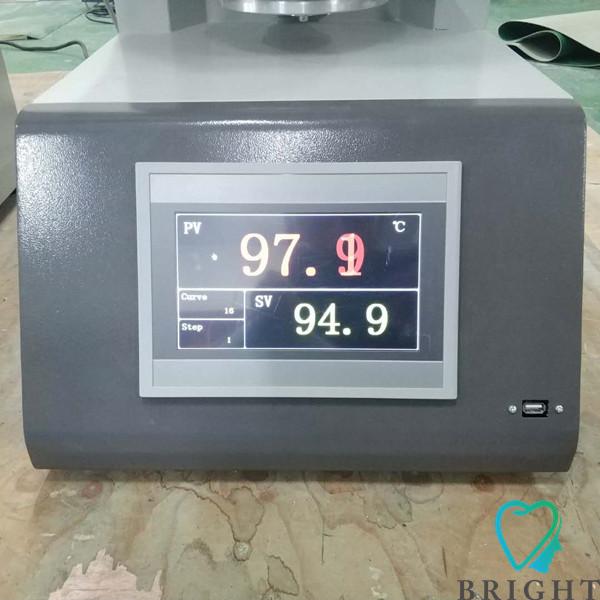

1,PID automatic control with 32 segment program                                                                                                                                         2, 7"Touch screen                                                                                                                                                                                    3,Prestore 5pcs sintering curve for bridges and crown..                                                                                                                              4,It can be romote control by Mobile,ingelligent work

Working base

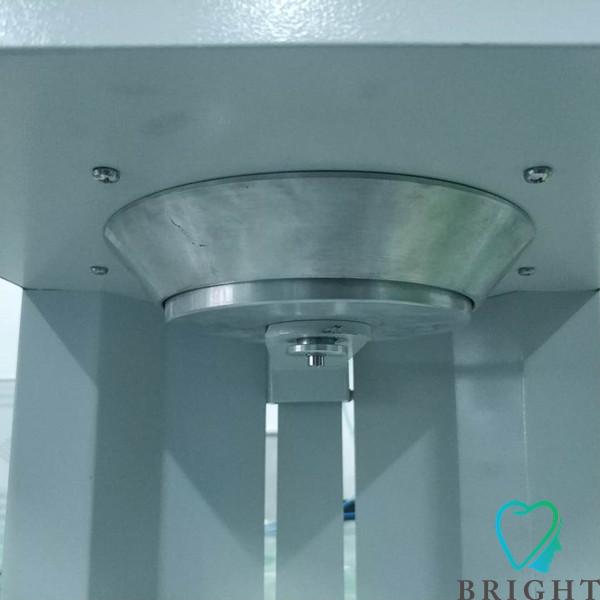

Automatic lift up and down

Temperature accuracy

±1℃

Uniformity of Temp

±5℃

Thermocouple

B Type

Standard Accessories

Crucible Clip 1pc, Thermal gloves 1 pair

Waranty

One Year Except heating element becasue it is consumables
