Mosi2 Rod

Description:

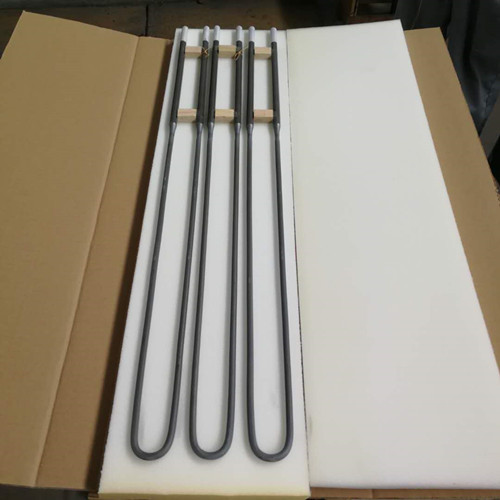

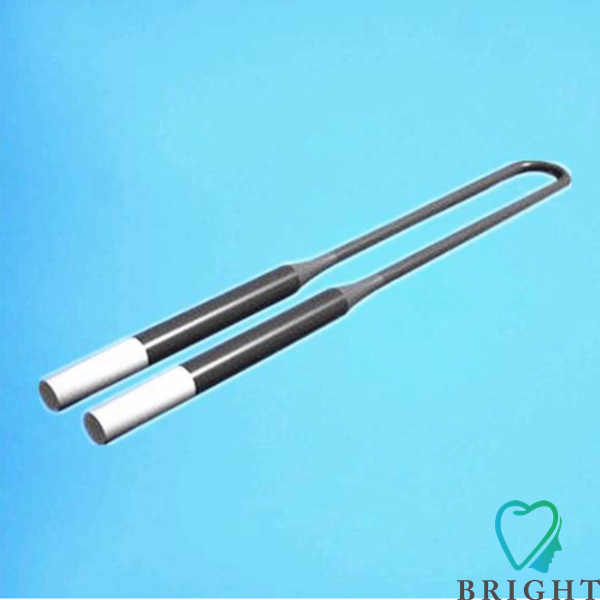

     U-shaped silicon molybdenum rod: The double-handle U-shaped design element is the most commonly used one. The heating end is welded to the end portion of the cold end, and the diameter of the cold end is twice the diameter of the hot end. This specification is the most common specification and is generally used for vertical suspension.

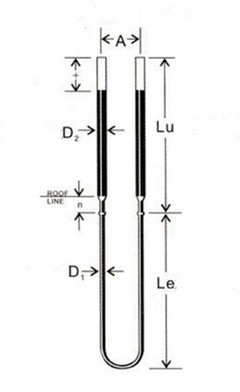

     Customers need to provide the parameters of the hot end diameter, the length of the hot end, the length of the cold end, and the center distance of the desired product when customizing the product.


     Material Grade Material Grade : 1700, 1800
     Diameter Diameter : D1/D2, mm/mm
     Hot end length Hot zone length : Le, mm
     Cold end length: Lu, mm
     For example:
     U-Shape, material grade Material Grade 1800

     D1=3mm, D2=6mm, Le=140mm, Lu=125mm, A=25mm

You can order now!
